Products > Connectors > IP68 Connector

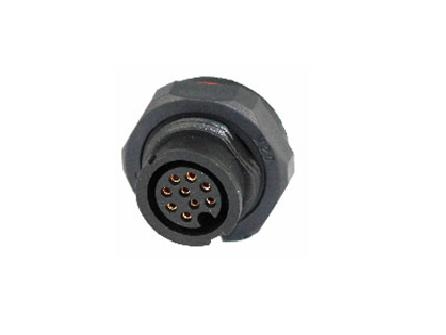

AC-371C IP 68 Connector
 Soldering Type

Operating Parameters
Current Rating : 15A
Voltage Rating : AC 250V
Contact resistance : < 5m
Ω
Dielectric resistance : 500mΩ at DC500V
Standing voltage : 3KV Under normal temperature

Material- ROHS Environmental protection material
Cable Type : PVC, PU, Rubber, Silicon
Shell material : Flame-resistant/anti-UV nylon (PA66) RL94V-0
Welded socket : Brass / Crown Spring : beryllium copper
pin : brass plated 4U
Seal-O-Ring : Silicon

Property
Waterproof Rating : IP68
Cable OD Rating : OD 11mm
Times of plug/pull : Above 3000 times
Operating temperature : -45
C ~ +105C
Humidity : 90% + 40
C
