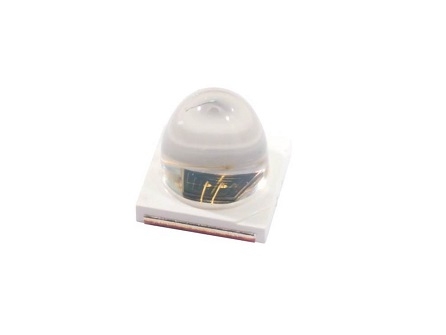

Item No.: AP3535FU-1FEI8
LEDs
|
Radiation Pattern
|
Color
|
Part Number
|
Radiometric Power (mW)
|
|
@350mA
|
Refer @1000mA
|
|
Emitter
|
Min.
|
Typ.
|
Min.
|
Typ.
|
|
Lambertian
|
Infrared 850
|
1FEI8
|
175
|
240
|
490
|
660
|
|
P/N
|
Color
|
Peak Wavelength λP,
|
Total Included Angle (degrees)
θ0.90V
|
Viewing Angle (degrees)
2 θ1/2
|
|
Min.
|
Typ.
|
Max.
|
|
AP3535
|
Infrared 850
|
840 nm
|
855 nm
|
870 nm
|
160
|
55
|
|
Parameter
|
Infrared 850
|
|
DC Forward Current (mA)
|
1000
|
|
Peak Pulsed Forward Current (mA)
|
1500 (less than 1/10 duty cycle@1KHz)
|
|
Average Forward Current (mA)
|
1000
|
|
LED Junction Temperature (°C)
|
120 °C
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
Enviroment
Operation Temperature: -40°C ~ 90°C
Storage Temperature: -40°C ~ 120°C
Please contact us for more detail.
