Products > LED Component > HV LED

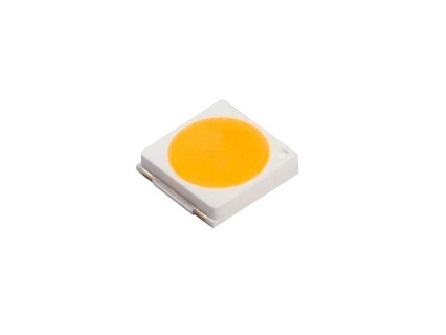

1W 3030 66V LED


Item No.: AT3030H66-1LEXX-R8



LEDs

Radiation Pattern

Color

Part Number

Emitter

Luminous Flux ΦV (lm)

CRI

Min.

Typ.

Min.

Lambertian

White

AT3030H66-1LEW-R8

90

120

80

Warm White

AT3030H66-1LEWW-R8

80

100

80

Radiation Pattern

Color

Dominant Wavelength λD,

Total

Included Angle (degrees) θ0.90V

Viewing Angle (degrees) 2 θ1/2

Min.

Typ.

Max.

Lambertian

White

5010 K

5320 K

5640 K

160

120

Warm White

2580 K

2700 K

2870 K

160

120

Parameter

White/Warm White

DC Forward Current (mA)

20

Peak Pulsed Forward Current (mA)

45 (less than 1/10 duty cycle@1KHz)

ESD Sensitivity

(HBM per MIL-STD-883E Method 3015.7)

±500V

LED Junction Temperature

120 °C



 Enviroment
Operation Temperature: -40°C ~ 90°C
Storage Temperature: -40°C ~ 120°C

 Please contact us for more detail.
