Products > LED Component > HV LED

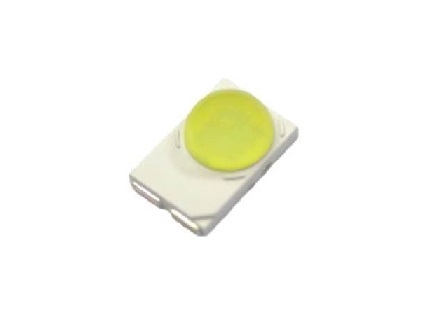

1W 3045 50V LED


Item No.: AP3045H50-1LEXX-RX

LEDs

Color

Part Number  Emitter

Luminous Flux ΦV  (lm)

CRI

Typical

Min.

Typ.

White

AP3045H50-1LECW-R7

100

120

72

AP3045H50-1LECW-R8

80

102

84

Warm White

AP3045H50-1LEWW-R8

70

90

82

Color

Color Temperature CCT

Total  Included  Angle  (degrees)  θ0.90V

Viewing  Angle  (degrees)
2 θ1/2

Min.

Typ.

Max.

White

4260 K

5900 K

7050 K

160

130

Warm White

2580 K

2900 K

3220 K

160

130



Enviroment
Operation Temperature: -40°C ~ 105°C
Storage Temperature: -40°C ~ 120°C

Please contact us for more detail.
