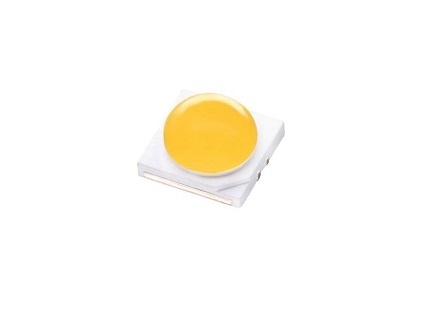

2W 3535 45V LED


Item No.: AT3535H45-2LEXX-RX

LEDs

Color

Part Number

Emitter

Luminous Flux ΦV(lm)

CRI

@33mA

Refer @50mA

Min.

Typ.

Min.

Typ.

Typ.

White

AT3535H45-2LEWT-R7

185

210

240

272

70

Neutral White

AT3535H45-2LENW-R7

185

205

220

266

70

Neutral White

AT3535H45-2LENW-R8

155

182

200

236

80

Warm White

AT3535H45-2LENW-R8

155

175

200

227

80

Color

Color Temperature CCT

Total

Included Angle (degrees) θ0.90V

Viewing Angle (degrees) 2 θ1/2

Min.

Typ.

Max.

White

4745 K

5400 K

6020 K

160

130

Neutral White

3700 K

3975 K

4250 K

160

130

Warm White

2580 K

2900 K

3250 K

160

130




Enviroment

Operation Temperature: -40°C ~ 105°C
Storage Temperature: -40°C ~ 120°C

Please contact us for more detail.
