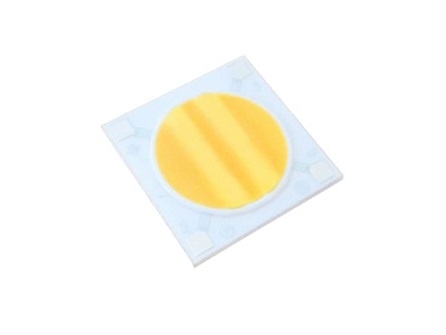

6W Dual Color Dimmable COB LED
 High flux density of lighting source
Good color uniformity
RoHS compliant
Energy Star binning structure, neutral white and warm white with 3 steps guarantee.
More energy efficient than incandescent and most halogen lamps
No UV
Long lifetime

Item No.:AT1414CBD-6LEW4827

LEDs

Radiation

Pattern

Color

Part Number

Emitter

Luminous Flux ΦV (lm)

CRI Typical

Min.

Typ.

Lambertian

Channel 1

AT1414CBD-6LEW4827

500

550

90

Channel 2

450

500

Color

Bin Code

Color Temperature CCT

Total

Included Angle
(degrees)
θ0.90V

Viewing Angle
(degrees)

 2 θ1/2

Min.

Typ.

Max.

Channel 1

U0

4490 K

4750 K

5010 K

160

120

Channel 2

M1

2670 K

2755 K

2840 K

160

120




Enviroment

Operation Temperature: -40°C ~ 90°C
Storage Temperature: -40°C ~ 120°C



Please contact us for more detail.
