Products > LED Component > UV LED

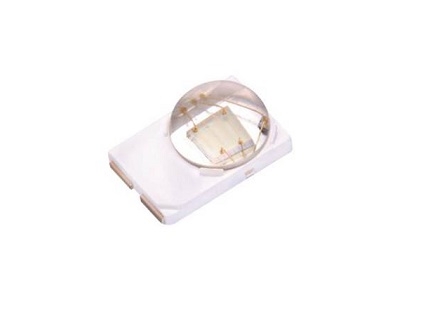

3045 1/3W UV LED
 100% foot print compatible with Cree XQ-E
Best thermal material solution of the world
Best Moisture Sensitivity: JEDEC Level 1
Lead free reflow soldering
RoHS compliant

Item No.: AT3045L-1LEV3941AT3045L-3LEV3941

LEDs

Radiation

Pattern

Color

Part Number

Radiometric Power (mW)

@350 mA

Refer @700mA

Emitter

Min.

Typ.

Min.

Typ.

Lambertian

UV 3941

AT3045L-1LEV3941

435

530

-

AT3045L-3LEV3941

810

990

Color

Forward Voltage VF (V)

Thermal Resistance
Junction to Slug (
°C/ W)

Min.

Typ.

Max.

UV 3941

2.85

3.40

4.10

10

Radiation
Pattern

Color


Dominant Wavelength
λD

Total

Included Angle (degrees) θ0.90V

Viewing Angle (degrees)
2
θ1/2

Min.

Typ.

Max.

Lambertian

UV 3941

390 nm

400 nm

410 nm

160

130

Enviroment
Operation Temperature: -40°C ~ 105°C
Storage Temperature: -40°C ~ 120°C

Please contact us for more detail.
