Products > LED Component > High Power LED

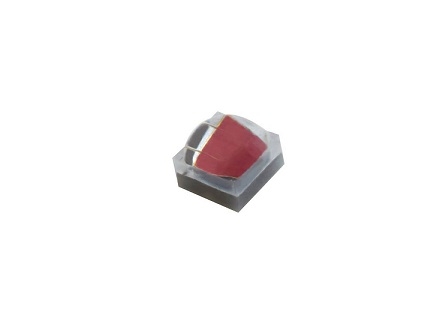

2W 1616 IR LED
 850/940nm Lambertian LED

Item No.: AT1616Q13-2LEIX

LEDs

Color

Part Number

Radiometric Power (mW)

@350mA

Refer @700mA

Refer @1000mA

Emitter

Min.

Typ.

Typ.

Typ.

Infrared 850

AT1616Q13-2LEI8

225

240

472

665

Infrared 940

AT1616Q13-2LEI9

225

235

457

640

Radiation
Pattern

Color

Color Temperature CCT /
Dominant Wavelength
λD

Total

Included Angle (degrees) θ0.90V

Viewing Angle (degrees)
2
θ1/2

Min.

Typ.

Max.

Lambertian

Infrared 850

840 nm

855 nm

870 nm

160

130

Infrared 940

925 nm

940 nm

955 nm

160

130



Enviroment
Operation Temperature: -40°C ~ 105°C
Storage Temperature: -40°C ~ 120°C

 Please contact us for more detail.
