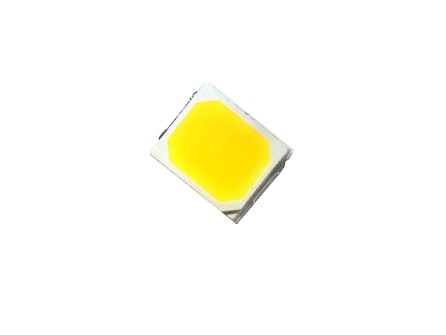

Parameter

Symbol

Rating

Unit

Power Dissipation

PD

80

mW

Peak Forward Current

IFP

100

mA

Forward Current(DC)

IF

30

mA

Reverse Voltage

VR

5

V

ESD Sensitivity

ESD

1000

V

LED Junction Temperature*2

Tj

115

℃

Operating Temperature Range
(Detail see page 6 Fig.3)

Topr

-40 ~ +85

℃

Storage Temperature Range

Tstg

-40 ~ +100

℃

Soldering Temperature

Tsol

Reflow Soldering : 260 ℃ for 10 sec.

Hand Soldering : 350 ℃ for 3 sec.

Parameter

Symbol

Min.

Typ.

Max.

Unit

Test Condition

Forward Voltage

VF

-

2.0

-

V

IF=20mA

Viewing Angle

2 θ 1/2

-

120

-

deg

Radiation Flux

Фr

-

15

-

mW

Peak Wavelength

λp

-

654

-

nm

Dominant Wavelength

λd

-

640

-

nm

Reverse Current

IR

-

-

10

μA

VR=5V

ESD Sensitivity

HBM

-

-

1000

V

MIL-STD-833G
