Products > LED Component > Automotive LED

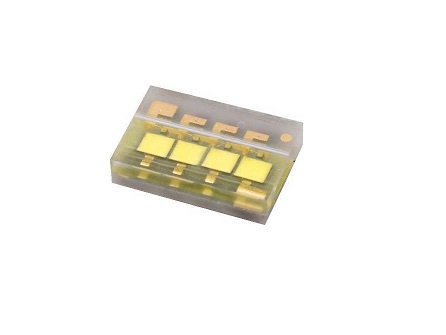

Automotive 4 LED Head Lamp


Item No.: AMT3854H-04LEW

LEDs

Radiation
Pattern

Color

Part Number Emitter

Luminous Flux ΦV (lm)

@1000mA

Refer @1200mA

Min.

Typ.

Min.

Typ.

Lambertian

White

AMT3854H-04LEW

1000

1120

1150

1280

Color

Forward Voltage VF (V)

Thermal Resistance Junction to Slug (°C/ W)

@1000mA

Refer @1200mA

Min.

Typ.

Max.

Typ.

White

11.9

13.1

14.9

13.25

1.0

Radiation
Pattern

Color

Color Temperature CCT

Total

Included Angle (degrees) θ0.90V

Viewing Angle (degrees)
2
θ1/2

Min.

Typ.

Max.

Lambertian

White

5380 K

5610 K

5850 K

160

120

5610 K

5850 K

6100 K

160

120

5850 K

6100 K

6370 K

160

120

6100 K

6370 K

6680 K

160

120



Enviroment
Operation Temperature: -40°C ~ 125°C
Storage Temperature: -40°C ~ 125°C

Please contact us for more detail.
