Products > LED Component > Automotive LED

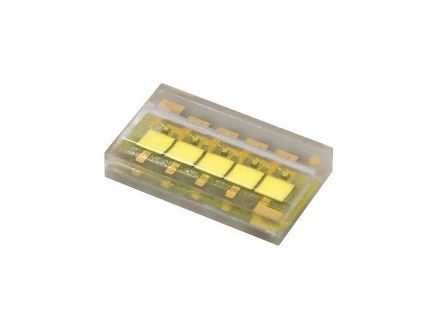

Automotive 5 LED Head Lamp


Item No.: AMT3863H-05LEW

LEDs

Radiation
Pattern

Color

Part Number Emitter

Luminous Flux ΦV (lm)

@1000mA

Refer @1200mA

Min.

Typ.

Min.

Typ.

Lambertian

White

AMT3863H-05LEW

1260

1400

1450

1610

Color

Forward Voltage VF (V)

Thermal Resistance Junction to Slug (°C/ W)

@1000mA

Refer @1200mA

Min.

Typ.

Max.

Typ.

White

14.8

16.3

18.6

16.6

0.9

Radiation
Pattern

Color

Color Temperature CCT

Total

Included Angle (degrees) θ0.90V

Viewing Angle (degrees)
2
θ1/2

Min.

Typ.

Max.

Lambertian

White

5380 K

5610 K

5850 K

160

120

5610 K

5850 K

6100 K

160

120

5850 K

6100 K

6370 K

160

120

6100 K

6370 K

6680 K

160

120





































Enviroment
Operation Temperature: -40°C ~ 125°C
Storage Temperature: -40°C ~ 125°C

Please contact us for more detail.
