Products > LED Component > HV LED

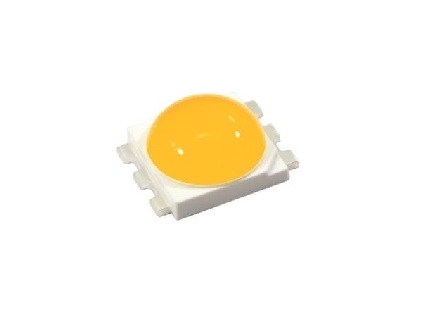

3W 5050 46V LED


Item No.: AT5050H46-3LEXX-RX

LEDs

Radiation
Pattern

Color

Part Number

Emitter

Luminous Flux ΦV (lm)

CRI

Typ.



Min.

Typ.



Lambertian

White

AT5050H46-3LEWT-R7

345

400

70



Neutral White

AT5050H46-3LENW-R7

325

385

70



Warm White

AT5050H46-3LEWW-R7

300

340

73



Color

Forward Voltage VF (V)

Thermal Resistance Junction to Slug (°C/ W)



Min.

Typ.

Max.



White/Neutral White/ Warm White

42

46

50

6



Color

Color Temperature CCT

Total

Included Angle (degrees) θ0.90V

Viewing Angle (degrees)
2
θ1/2

Min.

Typ.

Max.

White

5000 K

5740 K

6480 K

160

140

Neutral White

3710 K

4370 K

5030 K

160

140

Warm White

2580 K

3000 K

3220 K

160

140



Enviroment
Operation Temperature: -40°C ~ 90°C
Storage Temperature: -40°C ~ 120°C

Please contact us for more detail.
