Products > LED Component > High Power LED

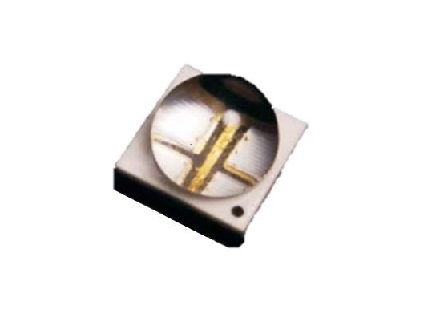

6868 1050nm 45 degree 5W LED
 Peak Wavelength:1050nm

Features

Ÿ   High Power Infrared LED

Ÿ   Very High radiant Intensity

Applications

Ÿ   Light Sources For Analysis

Ÿ   Industrial Light Sources

Ÿ   Water Quality Detection Light Source

Ÿ   High Speed Infrared Camera Source

Ÿ   Medical Light Sources

Items

Symbol

Min.

Typ.

Max.

Unit

Condition

Forward Voltage

VF

2.0

2.4

2.8

V

IF1000 mA

Radiated Power

Po

-

120

-

mW

Radiant Intensity

IE

-

220

-

mW/sr

Brightness

Iv

-

-



mcd

Peak Wavelength

λP

-

1050

-

nm

Half Width

Δλ

120

-

Dominant Wavelength

λD

-

-

-

Viewing Half Angle

θ1/2

±45

-

Deg.

Rise Time / Fall Time

Tr/Tf

-

90/50

-

ns

Enviroment
Operation Temperature: -30°C ~ 85°C
Storage Temperature: -30°C ~ 100°C

Please contact us for more detail.
