Products > LED Component > High Power LED

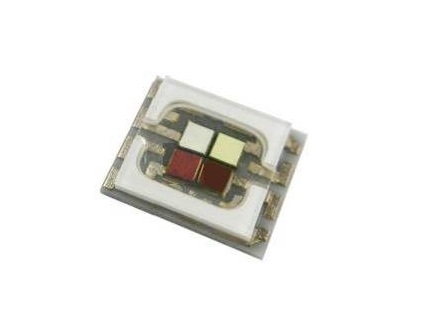

15W RGBA LED
 Compact light source
R, G, B, A four color in one package
Maximum drive current: 1000mA per LED die
Lead free reflow soldering
Superior ESD protection
RoHS compliant

Item No.: AT4758MCD-15LERGBA-8A
Applications
 Entertainment lighting (Stage lighting)
Architectural lighting
 Mood lighting
 Outdoor lighting
 Indoor lighting

Color

Part Number Emitter

Luminous Flux  or Radiometric Power

@700mA

Refer @1000mA

Min.

Typ.

Min.

Typ.

Red

AT4758MCD-
15LERGBA-8A

59 lm

70 lm

78 lm

94 lm

Green

140 lm

170 lm

169 lm

212 lm

Blue

760 mW

860 mW

975 mW

1135 mW

Amber

56 lm

70 lm

70 lm

89 lm

Color

Forward Voltage VF (V)

Thermal Resistance Junction to Slug  (°C/ W)

@700 mA

Refer @1000mA

Min.

Typ.

Max.

Typ.

Red

2.10

2.40

2.90

2.60

1.8

Green

2.90

3.50

4.20

3.75

Blue

2.90

3.30

4.00

3.45

Amber

2.10

2.50

3.00

2.65























Enviroment
Operation Temperature: -40°C ~ 85°C
Storage Temperature: -40°C ~ 120°C

Please contact us for more detail.
