Products > LED Component > High Power LED

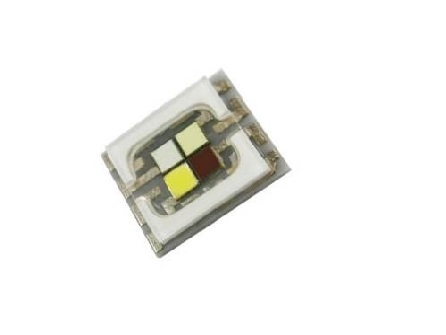

20W RGBW LED
 Color:RGBW

Item No.: AT4757MO-20LERGBW-8A
Applications
 Entertainment lighting (Stage lighting)
Backlighting (LCD, switches, keys, displays, illuminated advertising)
 Mood lighting
 Outdoor lighting
 Marker lights (e.g. steps, exit ways, etc.)
 Indoor lighting

Color

Forward Voltage VF (V)

Thermal Resistance Junction to Slug  (°C/ W)

@700 mA

Refer @1500mA

Min.

Typ.

Max.

Typ.

Red

2.20

2.60

3.10

2.88

1.8

Green

2.70

3.20

3.70

3.45

Blue

2.80

3.20

3.70

3.36

White

2.80

3.20

3.70

3.36

Radiation
Pattern

Color

Dominant Wavelength λD, or

Color Temperature CCT

Total

Included Angle (degrees) θ0.90V

Viewing Angle (degrees)
2
θ1/2

Min.

Typ.

Max.

Lambertian

Red

620 nm

624 nm

630 nm

160

120

Green

520 nm

526 nm

532 nm

160

120

Blue

452 nm

455 nm

457 nm

160

120

White

5760 K

6500 K

7250 K

160

120


Enviroment
Operation Temperature: -40°C ~ 85°C
Storage Temperature: -40°C ~ 85°C

Please contact us for more detail.
