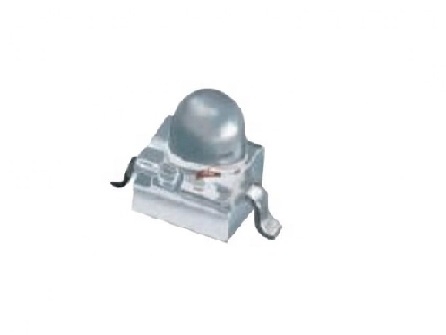

| Z Bend SMD IR 850nm LED |
| | 2.1*2.3*2.6*Φ1.8 diameter package.
Suitable for all SMT assembly and solder process.
Compatible with infrared and vapor phase reflow solder process
Low operating voltage and Low power consumption.
I.C.Compatible.
Long life solid state reliability.
RoHS compliant. |
|
|
|
Item No.: AD2321SZ-2025IR85-TR7
Applications
• Smoke Detector.
• Remote Control.
• Automatic Control System.
|
Parameter
|
Symbol
|
Min.
|
Typ.
|
Max.
|
Unit
|
Test Condition
|
|
Forward Voltage
|
VF
|
-
|
1.6
|
1.9
|
V
|
IF = 100mA
|
|
Reverse Current
|
IR
|
-
|
-
|
10
|
uA
|
VR =5V
|
|
Peak Wavelength
|
λp
|
840
|
850
|
870
|
nm
|
IF =100mA
|
|
Spectral Line Half-Width
|
Δλ
|
-
|
35
|
-
|
nm
|
IF =100mA
|
|
Radiant Power
|
IE
|
40
|
60
|
100
|
mW
|
IF =100mA
|
|
50% Power Angle
|
2θ½
|
-
|
25
|
-
|
deg
|
IF =100mA
|
Enviroment
Operation Temperature: -40°C ~ 85°C
Storage Temperature: -40°C ~ 100°C
