Item No.: SV3006-DW2AA-A
Characteristics

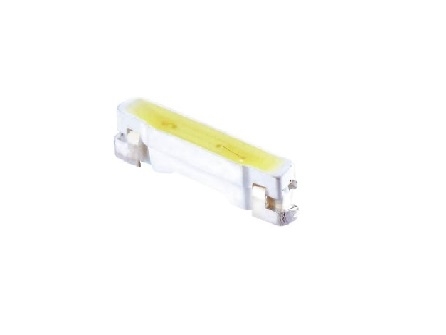

• Side View White LED
• High luminous intensity and high efficiency
• Package size: 3.0×0.85×0.6 mm
• Wide viewing angle: 120°
• Soldering methods: Reflow soldering
• RoHS compliant
• Moisture sensitivity level: Level 5a.
Application Scope
• LCD Back Lighting
• Indoor Lighting
• Outdoor Lighting
• Pilot Lighting
|
Parameter
|
Symbol
|
Min.
|
Typ.
|
Max.
|
Unit
|
Test Condition
|
|
Luminous Flux
|
IV
|
-
|
8.5
|
-
|
LM
|
IF=20mA
|
|
Forward Voltage
|
VF
|
2.7
|
-
|
3.0
|
V
|
IF=20mA
|
|
Reverse Current
|
IR
|
-
|
-
|
5
|
μA
|
VR=7V
|
|
Chromaticity Coordinates
|
X/Y
|
-
|
0.30
|
-
|
-
|
IF=20mA
|
Enviroment
Operation Temperature: -40°C ~ 85°C
Storage Temperature: -40°C ~ 90°C
Please contact us for more detail.
