Products > LED Component > High Power LED

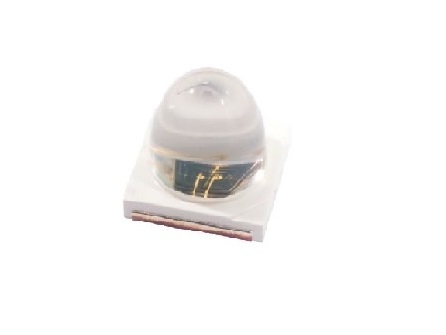

4W Single Color 60 degree LED
 100% foot print compatible with Cree XP-C / XP-E / XP-G
Best thermal material solution of the world
Best Moisture Sensitivity: JEDEC Level 1
RoHS compliant

Item No.: AT3535F-4F60EX

Color

Part Number

Luminous Flux or Power

@350mA

Refer @700mA

Refer @1000mA

Emitter

Min.

Typ.

Typ.

Typ.

Red

AT3535F-4F60ER

40 lm

55 lm

104 lm

140 lm

Green

AT3535F-4F60EG

110 lm

123 lm

197 lm

247 lm

Royal Blue

AT3535F-4F60ERB

560 mW

640 mW

1160 mW

1570 mW

Color

Forward Voltage VF (V)

Thermal Resistance Junction to Slug (°C/ W)

@ 350mA

Refer @700mA

Refer @1000mA

Min.

Typ.

Max.

Typ.

Typ.

Red

1.80

2.20

2.60

2.41

2.57

7

Green

2.70

3.30

3.70

3.56

3.73

7

Royal Blue

2.70

2.95

3.30

3.11

3.22

7


Enviroment
Operation Temperature: -40°C ~ 90°C
Storage Temperature: -40°C ~ 120°C
