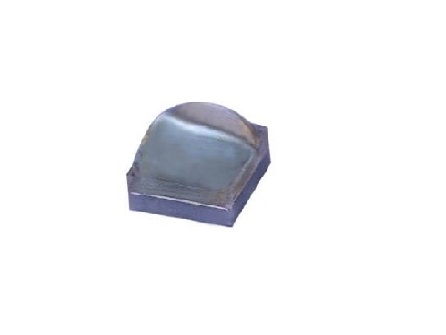

Item No.: AT1616Q13-4LEUB-V

Color

Part Number Emitter

Luminous Flux ΦV(lm)

@350mA

Refer @700mA

Refer @1000mA

Min.

Typ.

Min.

Typ.

Min.

Typ.

Blue

AT1616Q13-4LEUB-V

35

47

58

78

74

99

Color

Forward Voltage VF (V)

Thermal Resistance Junction to Slug (°C/ W)

@ 350mA

Refer @700mA

Refer @1000mA

Min.

Typ.

Max.

Typ.

Typ.

Blue

2.60

3.00

3.60

3.25

3.40

6

Radiation Pattern

Color

Color Temperature CCT / Dominant Wavelength λD

Total Included Angle (degrees) θ0.90V

Viewing Angle (degrees) 2θ1/2

Min.

Typ.

Max.

Lambertian

Blue

470 nm

477.5 nm

485 nm

160

130

Enviroment
Operation Temperature: -40°C ~ 105°C
Storage Temperature: -40°C ~ 120°C

Please contact us for more detail.
E-mail: service@all-brite-intl.com
