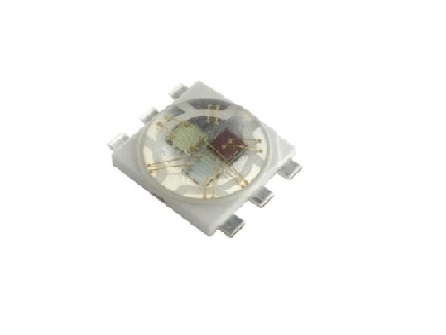

Item No.: AT5050SCP-3LERGB
Applications
• Reading lights (car, bus, aircraft)
•Portable (flashlight, bicycle)
• Uplighters / Down lighters
• Decorative/Entertainment
• Bollards/Security/Garden
• Cove/ Undershelf /Task
• Indoor/Outdoor Commercial and Residential Architectural
• Automotive Ext (Stop-Tail-Turn, CHMSL, Mirror Side Repeat)
• LCD backlights
|
Radiation Pattern
|
Color
|
Part Number
|
Luminous Flux ΦV (lm)
|
|
Emitter
|
Min
|
Typ
|
|
Lambertian
|
Red
|
AT5050SCP-3LERGB
|
44
|
52
|
|
Green
|
69
|
81
|
|
Blue
|
18
|
21
|
|
Color
|
Dominant Wavelength λd
|
Total Included Angle (degrees) θ0.90V
|
Viewing Angle (degrees) 2 θ1/2
|
|
Min.
|
Typ.
|
Max.
|
|
Red
|
620 nm
|
623 nm
|
630 nm
|
160
|
140
|
|
Green
|
520 nm
|
525 nm
|
530 nm
|
160
|
140
|
|
Blue
|
460 nm
|
462 nm
|
465 nm
|
160
|
140
|
|
Color
|
Forward Voltage VF (V)
|
|
Min.
|
Typ.
|
Max.
|
|
Red
|
1.9
|
2.3
|
2.5
|
|
Green
|
3.0
|
3.3
|
3.6
|
|
Blue
|
3.1
|
3.4
|
3.7
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
Enviroment
Operation Temperature: -40°C ~ 105°C
Storage Temperature: -40°C ~ 120°C
