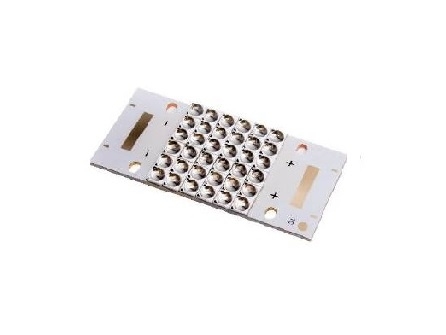

| 32x70 mm 400W UV 360-400 nm LED |
| | RoHS compliant
Quartz Glass Lens
View angle 60° |
|
|
|
Item No.: AT3270LM-40060FMVXXXX
|
Radiation
Pattern
|
Color
|
Part Number
Emitter
|
Radiometric Power (mW)
|
|
@6000mA
|
Refer @8400mA
|
|
Min.
|
Typ.
|
Typ.
|
|
Focusing
|
UV-S
|
AT3270LM-40060FMV3637
|
72
|
100
|
136.5
|
|
UV-M
|
AT3270LM-40060FMV3839
|
72
|
104
|
140
|
|
UV
|
AT3270LM-40060FMV3940
|
72
|
111.5
|
151
|
|
Color
|
Forward Voltage VF (V)
|
|
@ 6000mA
|
Refer @8400mA each
|
|
Min.
|
Typ.
|
Max.
|
Typ.
|
|
UV-S
|
38.4
|
44.4
|
50.4
|
45.6
|
|
UV-M
|
36.0
|
40.8
|
45.6
|
42.0
|
|
UV
|
36.0
|
40.8
|
45.6
|
42.0
|
|
Radiation
Pattern
|
Color
|
Peak Wavelength λP
|
Total
Included Angle
(degrees) θ0.90V
|
Viewing Angle
(degrees)
2 θ1/2
|
|
Min.
|
Typ.
|
Max.
|
|
Focusing
|
UV-S
|
365 nm
|
367.5 nm
|
370 nm
|
80
|
60
|
|
UV-M
|
380 nm
|
385 nm
|
390 nm
|
80
|
60
|
|
UV
|
390 nm
|
395 nm
|
400 nm
|
80
|
60
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Enviroment
Operation Temperature: -40°C ~ 85°C
Storage Temperature: -40°C ~ 100°C
Please contact us for more detail.
