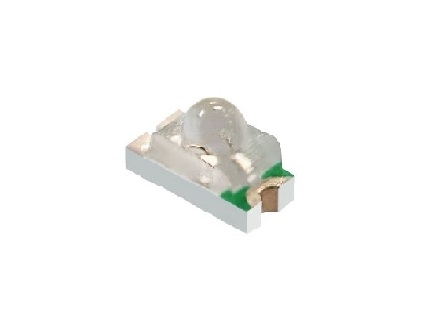

0603 60 Degree LED
 Dimension (L / w / h): 1.6 x 0.8 x 0.9 mm
Color: Emerald green light / red light / blue light / yellow light / yellow green light
Colloid: transparent spherical colloid
EIA standard packaging
Environmental protection products meet ROHS requirements
Suitable for automatic placement machine
Suitable for infrared reflow soldering process

Item No.: AP0603T-20600EXX2AA-A

Parameter

Symbol

Rating

Unit

Green

Red

Blue

Yellow

Yellow Green

Power Consumption

PD

90

60

80

60

60

mW

Forward Current

IF

30

20

20

20

20

mA

Peak Forward Current
(1/10 duty cycle 0.1ms)

IFP

90

70

90

70

90

mA

Reverse Voltage

VR

5

V

Electrostatic discharge

ESD

2000

1500

1500

2000

1500

V

Operating Temperature Range

Topr

-30 ~ + 85

Storage Temperature Range

Tstg

-40 ~ + 90

Reflow soldering

Tsol

255°C ,10s, Hand soldering : 300°C ,3s

Enviroment
Operation Temperature: -30°C ~ 85°C
Storage Temperature: -40°C ~ 90°C

Please contact us for more detail.
