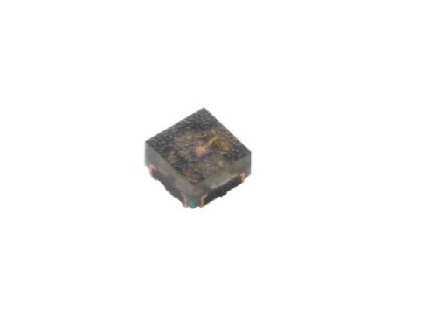

| 0707 RGB SMD LED (Common Anode) |
|
|
|
|
Item No.: AA0808BD-03LERGB-4ABB-CA
Applications
• Indoor signage display applications
• Indoor decorating and entertainment design
• Flat backlight for LCD, switch and symbol
• Indicator and backlighting for all consumer electronics
|
Emitted Color
|
Chip Materials
|
Resin Color
|
|
Brilliant Red
|
AlGaInP
|
Black Surface Diffused
|
|
Brilliant Green
|
InGaN
|
|
Brilliant Blue
|
InGaN
|
|
Parameter
|
Symbol
|
Rating
|
Unit
|
|
Forward Current
|
IF
|
R6
|
10
|
mA
|
|
GA
|
10
|
|
BD
|
10
|
|
Peak Forward Current
(Duty 1/10 @1KHz)
|
IFP
|
R6
|
20
|
mA
|
|
GA
|
20
|
|
BD
|
20
|
|
Power Dissipation
|
Pd
|
R6
|
24
|
mW
|
|
GA
|
31
|
|
BD
|
31
|
|
ESD
(Classification acc. AECQ101)
|
ESDHBM
|
R
|
2000
|
V
|
|
G
|
1000
|
|
B
|
1000
|
|
Junction Temperature
|
Tj
|
100
|
℃
|
|
Operating Temperature
|
Topr
|
-40 ~ +85
|
℃
|
|
Storage Temperature
|
Tstg
|
-40 ~ +90
|
℃
|
|
Soldering Temperature
|
Tsol
|
Reflow Soldering: 260℃ for 10 sec.
Hand Soldering: 350℃ for 3 sec.
|
| |
|
|
|
|
|
|
Enviroment
Operation Temperature: -40°C ~ 85°C
Storage Temperature: -40°C ~ 90°C
Please contact us for more detail.
