Products > LED Component > LED Display

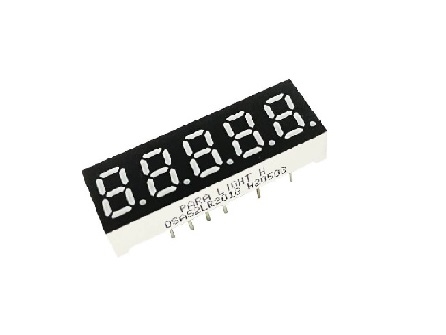

0.27 inch 5 digit Through Hole Red LED Display
 6.80mm (0.27 Inch ) Digit Height
Common Anode
I.C. Compatible
Low Power Consumption
Pb Free Products
ROHS Compliance
Highlight<-800v The Led Can Withstand The Max Static Level When Assembling Or Operation
Black Face, White Segments

Item No.: AD27FT7-20ERBW-CA

Parameter

Symbol

Min.

Typ.

Max

Unit

Condition

Forward Voltage , Per Segment

VF

-

2.0

2.6

V

IF=20mA

Reverse Current , Per Segment

IR

-

-

100

μA

VR=5V

Peak Emission Wavelength

λP

-

645

-

nm

IF=20mA

Dominant Wavelength

λd

-

630

-

nm

IF=20mA

Spectral Line HalfWidth

Δλ

-

20

-

nm

IF=20mA

Luminous Intensity Per Segment

IV

2.0

5.0

-

mcd

IF=10mA

0.2

0.6

-

IF=1mA

Enviroment
Operation Temperature: -35°C ~ 85°C
Storage Temperature: -35°C ~ 85°C

Please contact us for more detail.
