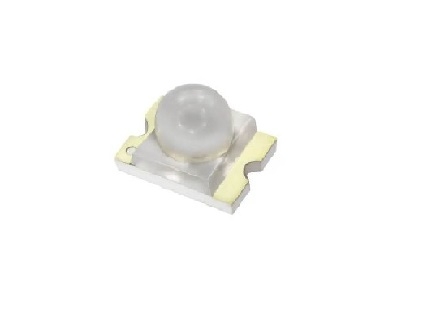

Item No.: AN1210D-2020EXX2AA-A
|
Parameter
|
Symbol
|
Rating
|
Unit
|
|
UA
|
UB
|
UO
|
UR
|
YG
|
PG
|
|
Power Dissipation
|
Pd
|
72
|
85
|
60
|
65
|
65
|
85
|
mW
|
|
Forward Current
|
If
|
30
|
25
|
25
|
30
|
25
|
25
|
mA
|
|
Peak Forward Current
(1/10 duty cycle 0.1ms)
|
Ifp
|
80
|
100
|
100
|
100
|
80
|
100
|
mA
|
|
Reverse Voltage
|
VR
|
5
|
5
|
5
|
5
|
5
|
5
|
V
|
|
Electrostatic Discharge
|
ESD
|
1500
|
2000
|
1500
|
2000
|
2000
|
2000
|
V
|
|
Operating Temperature Range
|
Topr
|
-40 ~+85
|
-30 ~+85
|
-40 ~+85
|
℃
|
|
Storage Temperature Range
|
Tstg
|
-40 ~ +85
|
℃
|
|
Soldering Temperature
|
Tsol
|
Reflow Soldering 255℃ For 10 sec
Hand Soldering 300℃ For 3 sec
|
Enviroment
Operation Temperature: -40°C ~ 85°C
Storage Temperature: -40°C ~ 85°C
